PPCGI Hang Sliding Door for Cleanroom, Hospital or Lab with Hermetic, Sound Insulated and Automatic Closing Function
Hang Sliding Door discription
|
NAME: |
hang sliding door |
|
MATERIAL: |
COLORED GI PANEL/stainless steel |
|
INTERIOR MATERIAL: |
ALUMINUM HONEYCOMB/paper honeycomb |
|
Thickness of door leaf: |
40mm |
|
WALL THICKNESS |
Customizable |
|
DOOR SIZE: |
single leaf door:1500*2100mm, 1500*2100MM/1600*2100MM/1800*2100mm for double leaf door |
|
Color: |
Customized |
|
Wall type: |
SANDWICH PANEL ,HANDICRAFT PANEL , BRICK WALL |
|
Access control: |
hand sensor, foot sensor, push button, keypad, radar sensor, etc. |
Hang Sliding Door Material
1, Surface:
a, Color coated cold roll steel with decorated 304# stainless steel panel.
With stainless steel framed.
Color: usually blue, white, grey-white, beige, etc.
b, Stainless steel. SUS304. with decorated 304# stainless steel panel.
Color: original stainless steel color.
c, HPL board. with decorated 304# stainless steel panel.
d, Aluminum panel. (with color coated) with decorated.
304# stainless steel panel.
2, Infilling:
a, Steel structure + MDF/plywood board Advantage: strong & insulation
b, High density PU foam Advantage: light and insulation
c, 30-90 min fire rated cotton/fire rated perlite board Advantage: fire rated
3, Handle & hinge: stainless steel/aluminum
4, Glass: Thickness = tempered glass/60min fire rated glass/lead glass
Thickness = 6mm to 20mm
5, Driven System: automatic sliding door opening system
With brushless motor, feet/hand sensor switch, microcomputer control system, etc.
All with CE certificate
6, Seal material: silicone rubber
7, Door frame material: 1.0mm stainless steel

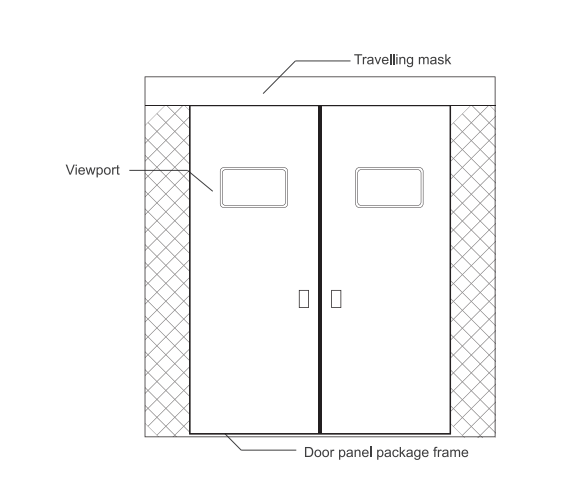

hang sliding door diagram:
|
Hospital Door Technical Specifications |
|
Door skin material |
Color painted steel, stainless steel (SUS), aluminum, PVC, fireproof board, etc. |
|
|
Door frame material |
Stainless steel, aluminum |
|
|
Knock blade material |
Stainless steel |
|
|
Seal material |
Silica gel, rubber |
|
|
Door lock & door hinge material |
Stainless steel |
|
|
Door skin color |
Original SUS color, original aluminum color, light blue, white, grey, beige, etc. |
|
|
Door size |
swing door |
Single door width: 700mm - 1000mm Mother & son door width: 1200mm - 1400mm Double door width: 1400mm - 1800mm Door height: 1900mm - 3000mm |
|
sliding door |
Single door width: 1000mm - 2200mm Double door width: 1500mm - 3000mm Door height: 1900mm - 3100mm |
|
|
Automatic door system |
Opening door by hand sensor switch, feet sensor switch or press switch |
|
|
Door advantage |
Airtight, easy clean and antibiosis |
|
∗ Please kindly note that this product is customized, and the price is only for your reference. If need exact price, please contact us before starting order. After confirming the size and your requirements, we will offer the exact quotation.
