Industrial and Commercial Overhead Door & Thermal Sectional Door & Steel Sectional Door for Warehouse
These automatic industrial overhead sectional doors are constructed from high-quality, double-layered hot-dip galvanized steel sheets and imported energy-efficient polyurethane materials; depending on door size and specific requirements, the panels are designed without steel reinforcement backings. Certain sections of the door combine a new type of aluminum alloy with high-quality polycarbonate (PC) panels. This design not only enhances the aesthetic appeal of industrial and commercial buildings but also accommodates various high-lift track configurations.
Overhead door structure:
|
Item
|
Details
|
Door motor
|
FROG PUPIL
|
|
Speed
|
0.2-0.3m / s
|
Foam material
|
high-density Japan Tosoh polyurethane foaming material (foaming density 48kg + 2kg / m³)
|
|
Door panel
|
42mm
|
Manual operation
|
Manual electric interchangeable
|
|
Safety protection
|
anti-wire rope break device, bottom airbag device, torsion spring anti-break function.
|
Wind loading rating
|
4*4 Newton 700 / m2
|
|
Torsion spring
|
≥30,000 times
|
Sound insulation
|
24dB
|
|
Motor
|
German FROG PUPIL,human-machine interface intelligent control system
|
Airtight
|
Level 2 2.0 m3 / m2 / h (under 50Pa pressure)
|
|
Watertight
|
Level 3 (water pressure 30Pa)
|
Fire rating
|
Class B fire retardant
|
Rubber seals all around
Using 2.0mm thick galvanized track
Equipped with torsion spring anti-break device
Equipped with wire rope anti-break device

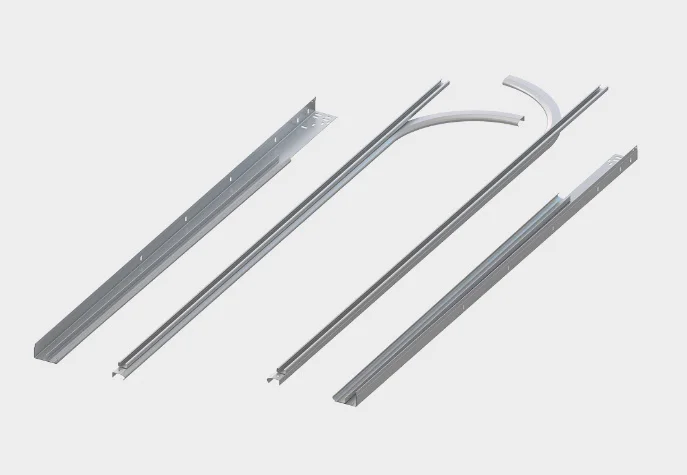

Galvanized track and supporting rail

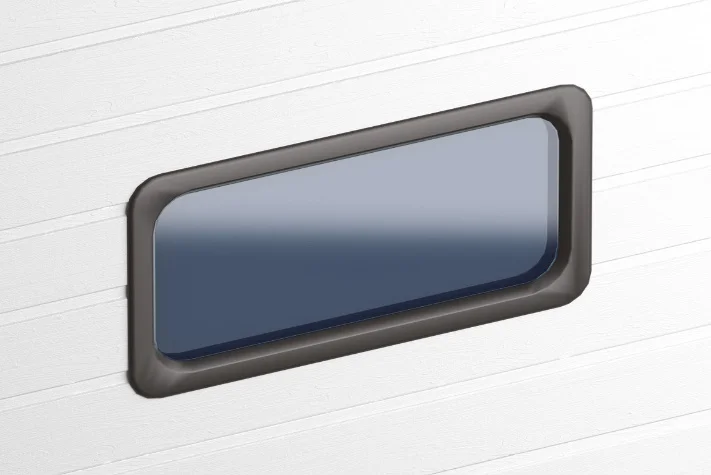

Optional transparent window
