Fire Resistant Glass Escape Door
Material Steel or stainless steel
Project Solution Capability Graphic Design, Total Solution for Projects
Special Door Type Fire Doors
Type Special Doors
Transport Package Strong Carton / Plywood Crate
HS Code 7308300000
Production Capacity 30000 / Month
Packaging & Delivery
Package Size 210.00cm * 90.00cm * 5.00cm
Package Gross Weight 120.000kg
Fire Resistant Glass Escape Door Description
UL (Underwriters Laboratories) Listed Fire Resistant Glass Escape Door are doors that have been tested and certified by UL to meet specific standards for fire resistance and safety. These doors are designed to prevent the spread of fire and smoke for a specified amount of time, usually ranging from 20 minutes to 3 hours, depending on the door's construction and the intended use.
Fire Resistant Glass Escape Door features:
Steel construction: Steel is a durable and fire-resistant material that provides protection against heat, fire, and smoke.
Fire-resistant materials: Fire rated steel doors typically have a core made of fire-resistant materials such as gypsum or mineral wool. These materials are designed to prevent the spread of fire and smoke and to provide insulation to reduce heat transfer.
Intumescent seals: Intumescent seals are materials that expand when exposed to heat, forming a barrier that helps prevent the spread of fire and smoke.
Self-closing and positive latching: Fire Resistant Glass Escape Door are typically self-closing, meaning they will automatically close when they sense heat or smoke.
Label and labeling: Fire Resistant Glass Escape Door are marked with a label that indicates the door's fire rating and other relevant information.
Installation: Fire Resistant Glass Escape Door must be installed in accordance with UL and building codes to maintain their fire resistance and safety.
It's important to note that UL Listed fire rated steel doors are not fireproof, but they are designed to provide a level of protection against fire and smoke for a specified amount of time.

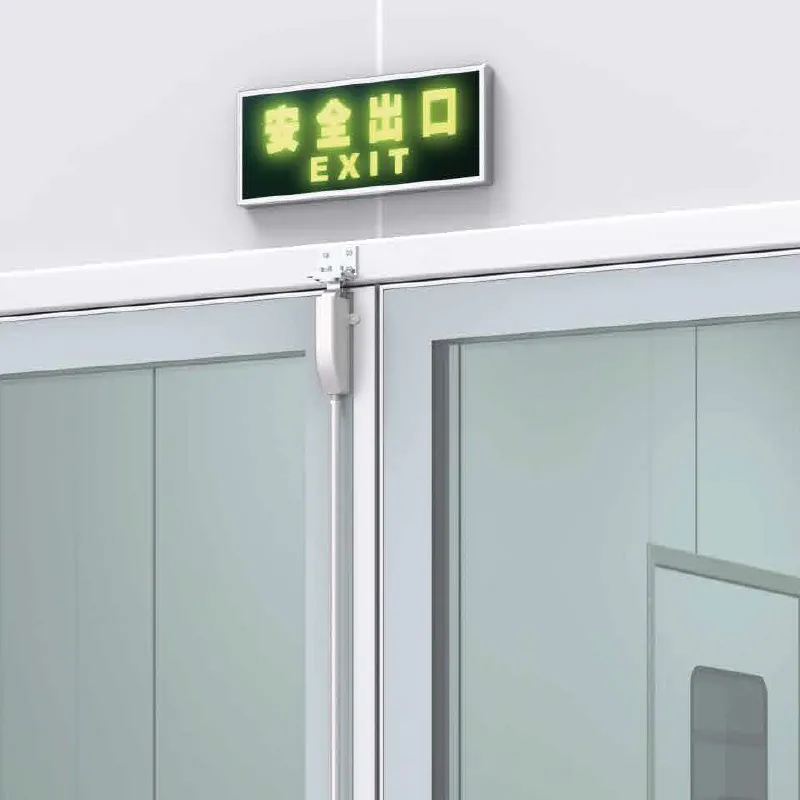

Detailed Photos
Product Parameters |
|
| Door Material |
Galvanized Steel or stainless steel |
| Door Panel Thickness |
50mm or 2" inches |
| Frame Depth |
standard 110mm or 4 1/4" inches, or customized per drawing |
| Door leaf sheet |
22 Ga.-18 Ga.(/1.0/1.2 mm) galvanized steel sheet |
| Door frame sheet |
16 Ga.-14 Ga.(1.5mm-2.0mm) galvanized steel sheet |
| Accessories |
Lock, handle, hinges, door closer, panic bar and other as requested. |
| Window | Customized |
| Surface treatmen |
Powder coated or heat transfer printing with rich wooden color |
| CAD Drawing |
available before manufacture |
| Inner filling |
Perlite or Insulated rockwool |
| Certificate | UBC 7-2 (1997); UL 10C (2009); UL 10B (2009); CAN/ULC S104 (2010); NFPA 252 (2012) |
