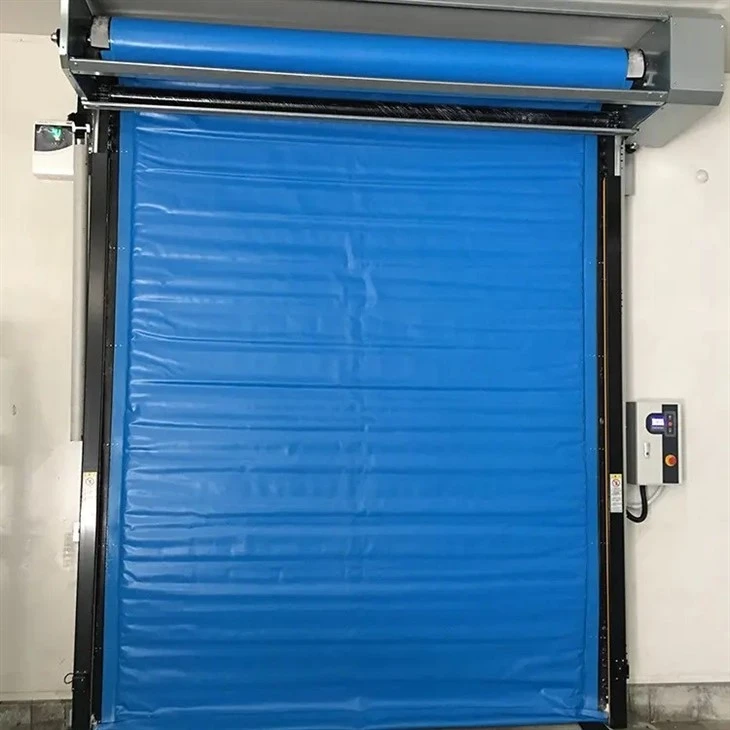

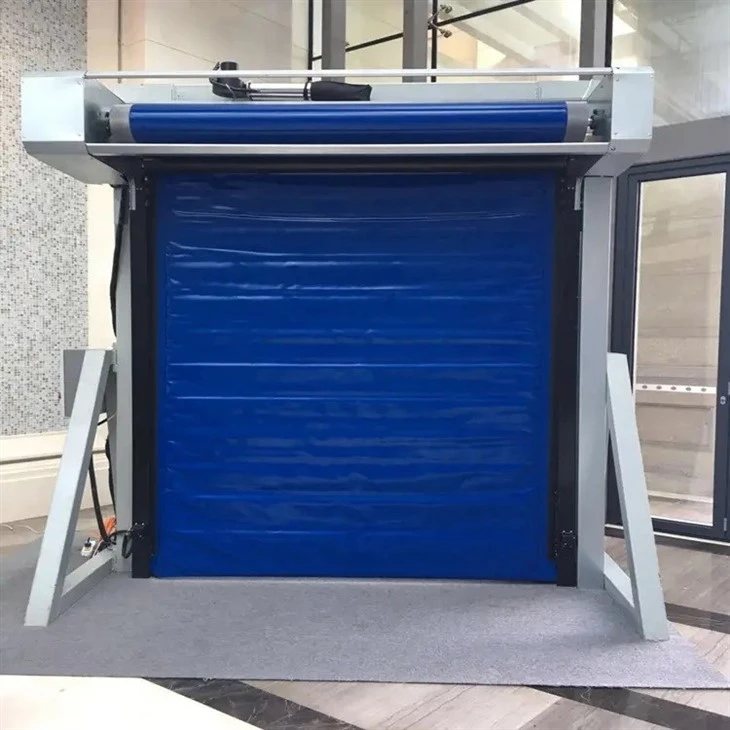

Self Recovery Automatic Plastic Zipper Door For Cleanroom Construction

Self Recovery Automatic Plastic Zipper Door for Cleanroom Construction









Overview

Basic Info.

Model NO.

Customizable

Material

Steel

Type

Rolling

Open Style

Revolving

Opening Type

Power Driven

Special Function

Security

Color

White

Certification

ISO9001, CE

Position

Industrial

Surface Finishing

Finished

Maximum Size

Width: 5500mm X Height: 5500mm

Opening Speed

up to 2.4 Meters Per Second

Closing Speed

up to 2 Meters Per Second

Frame Construction

Galvanized Steel Optional: Stainless Steel

Motor

Servo Motor Protection Level IP 65

Control Box

Servo Control Box Protection Level IP 54

Voltage

Single Phase 220V-18A

Frequency

50-60Hz

Transport Package

Wooden Case

Specification

customized

Trademark

Hinuode

Origin

China

HS Code

7610100000

Production Capacity

300pieces/Month

Packaging & Delivery

Package Size

500.00cm * 58.00cm * 58.00cm

Package Gross Weight

300.000kg

Product Description





Plastic Zipper Door Product Description





Plastic Zipper Door Technique Datas

Maximum size	Width: 5500mm x Height: 5500mm
Opening speed Closing speed	Up to 2.4 meters per second Up to 2 meters per second
Frame construction	Galvanized steel Optional: Stainless steel
Scroll	Steel- 114 × 2mm
Side guide groove	The material is reinforced polyethylene Optional: Equipped with track reinforcement components from bottom to 300mm
Motor	servo motor Protection level IP 65
Control box	servo control box Protection level IP 54
Standard detector	Install photoelectric protection on the door rail (optional grating) Install wireless safety anti pinch system at the bottom edge of the door curtain
Voltage frequency	Single phase 220V-18A 50-60Hz







FAQ

Can sponge dock seals prevent rain?
The Plastic Zipper Door seal adopts a PVC curtain wrapped sponge design, and the top adopts a tilted design, which facilitates the flow of rainwater and has a good waterproof effect.



What car models can be sealed with sponge dock seals?
The width range of the sponge dock seal for vehicles (the difference in width between the widest and narrowest vehicles) is up to 600mm; The maximum height range of the sealed vehicle (the height difference between the highest and lowest vehicles) is 1000mm, which is suitable for sealing most vehicle models. If the width/height range of the vehicle exceeds the standard, two different sizes of door covers can be used for parking vehicles of different sizes
