Suitable for docking with zipper quick door curtains
Play a strengthening role

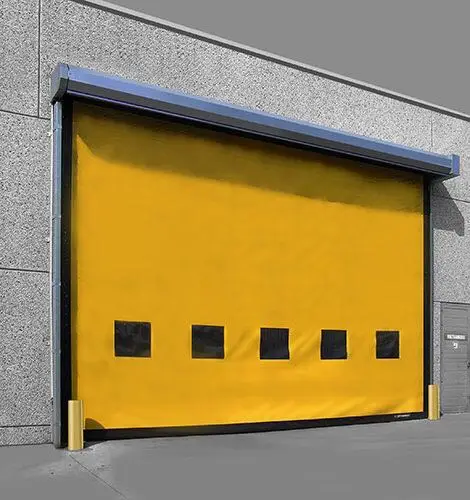

Dust Production Construction Zipper Door Kit

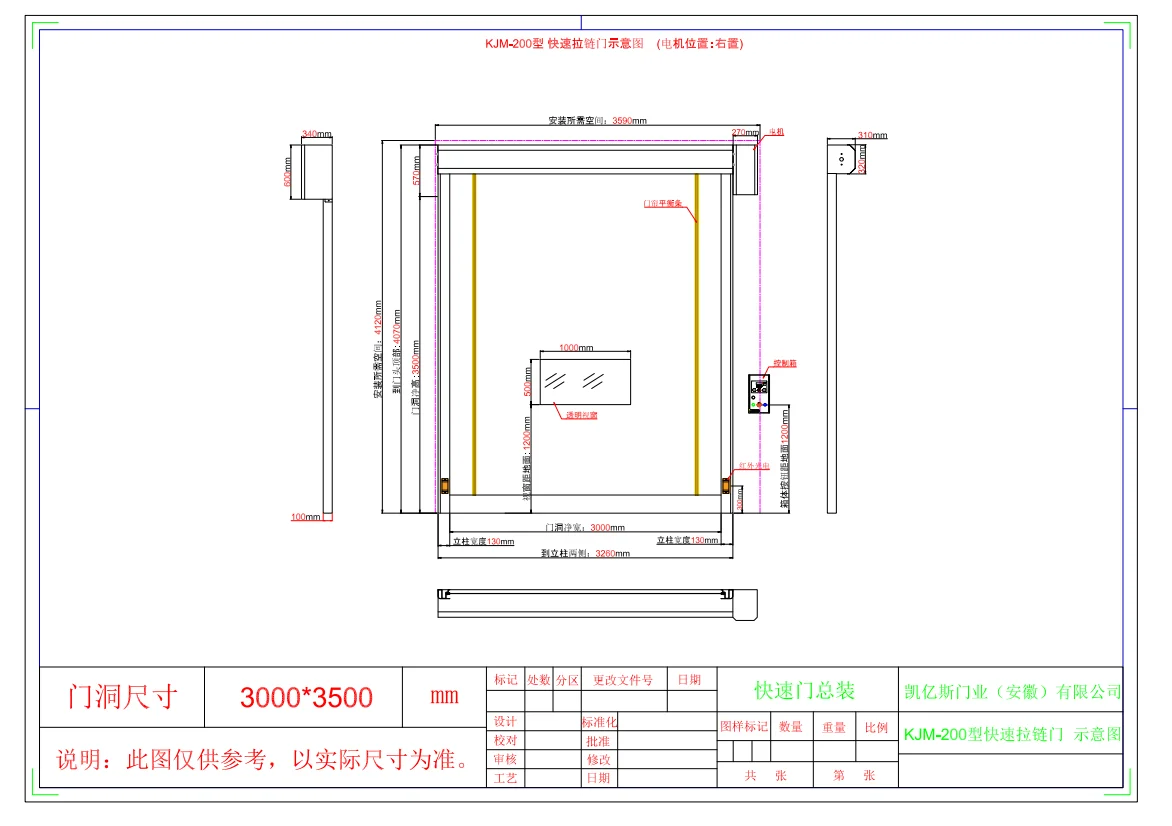

Zipper Door Kit CAD design drawings
Technical Parameter
|
Product Name
|
Zipper Door Kit | |||
|
Maximum Door Size
|
W6000mm * H6000mm
|
|||
|
Operation speed
|
0.6m/s-1.5m/s, adjustable
|
|||
|
Operation way
|
Remote control, wall switch, Magnetic loop,Radar, Pull Rope Switch, Signal lamp
|
|||
|
Frame Structure
|
Galvanized steel / 304 Stainless steel
|
|||
|
Curtain Material
|
High density PVC sheet, with Self Repairable Zipper
|
|||
|
Voltage
|
220V/50HZ
|
|||
|
Motor Power
|
0.75kw - 5.50kw
|
|||
|
PVC base cloth thickness
|
1.2mm
|
|||
|
Safety Performance
|
Infrared photo sensor, Safety airbag edge protection
|
|||
|
Tolerance Frequency
|
2 times/min, Inverter opening 2500-3000 times/day
|
|||
|
Wind Resistance
|
Class 6
|
|||
|
Working Temperature
|
-25 °C to 65 °C
|
|||
|
Feature
|
Anti collision, sealing, waterproof
|
|||
Accessories series
PVC strips
Material: PVC
Balance bar
Material:PVC
Welded to the zipper curtain
Used for the butt of zipper door curtains
Welded to the zipper curtain
Used for the butt of zipper door curtains

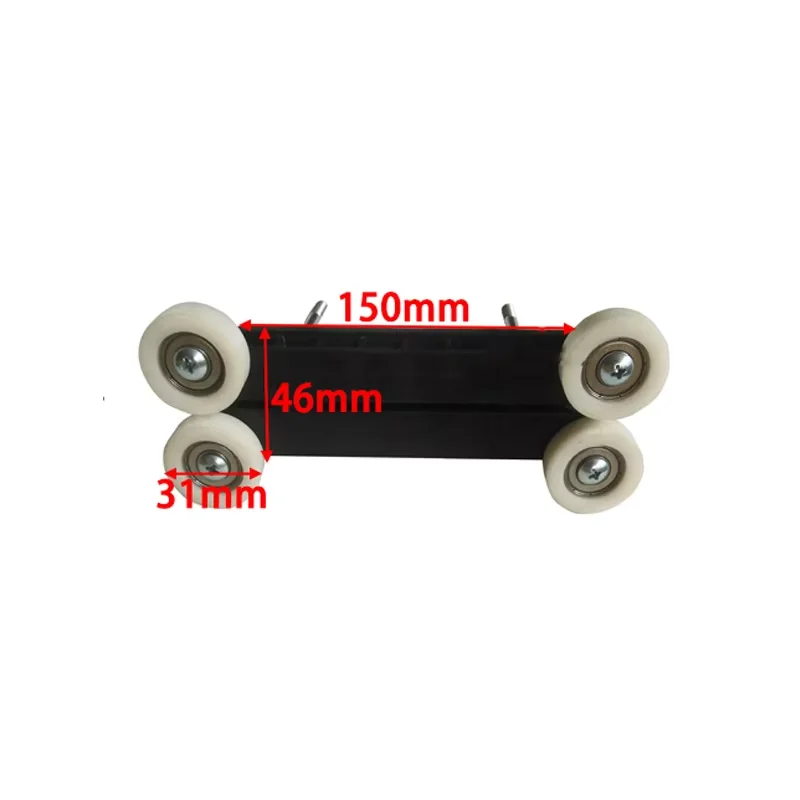

Material:TPU Resetting block dimensions: length 15,thickness 4 cm, width 5 cm Reset wheel:diameter 3 cm Used in conjunction with
the zipper to repair the zipper door
the zipper to repair the zipper door

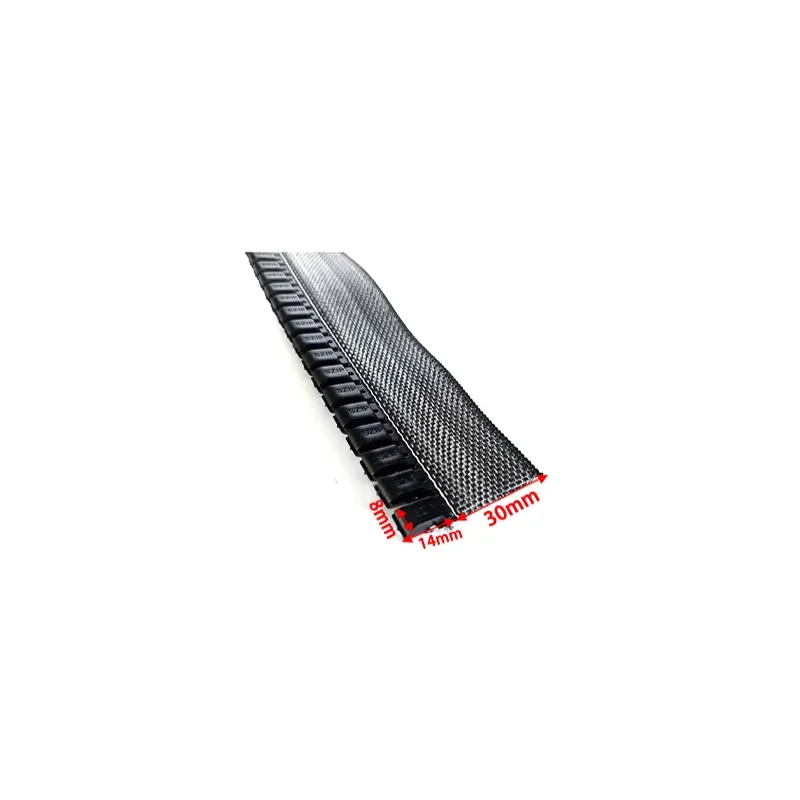

Webbing Zipper
Tooth material POM 102 teeth per meter The teeth are 14MM wide and 8MM thick Fabric material polyester yarn +PVC welding wire
Single-layer fabric thickness 1.8MM
Single-layer fabric thickness 1.8MM

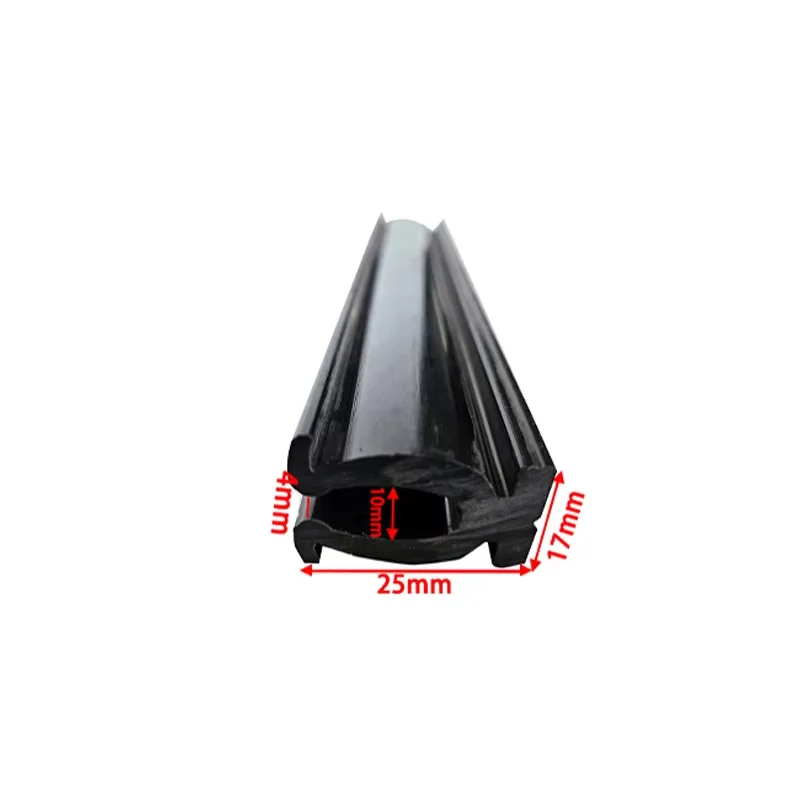

Material:HDPE
Polymer,highly smooth,super
cold resistant material with
excellent impact resistance
Length of 4 meters per piece
Polymer,highly smooth,super
cold resistant material with
excellent impact resistance
Length of 4 meters per piece
Material:Aluminum alloy profile
+PVC profile
Length:4 m/root
+PVC profile
Length:4 m/root
Material:HDPE
Used with all black zipper
Used with all black zipper

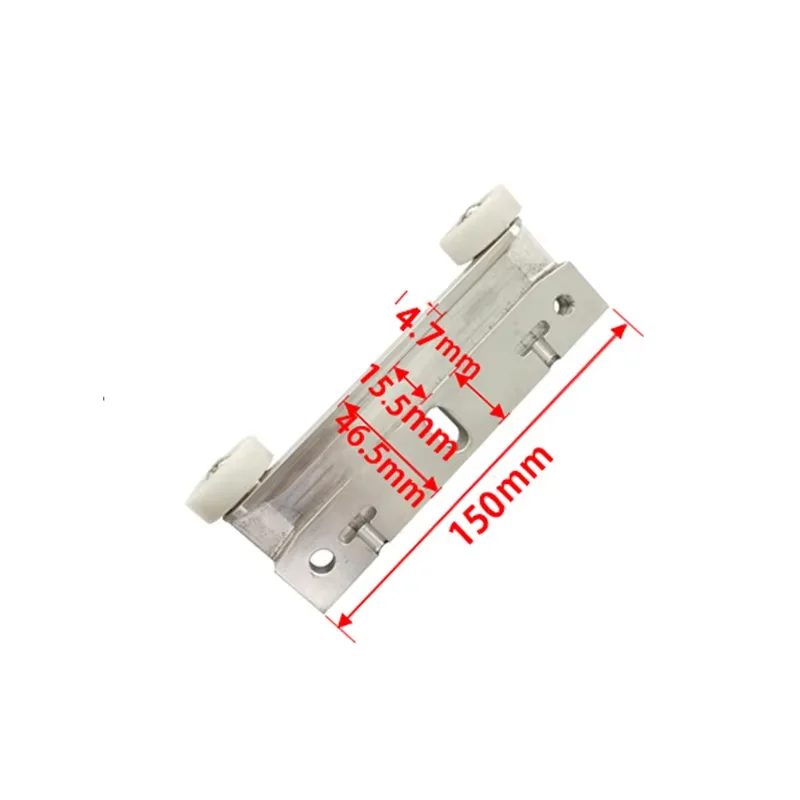

Material aluminum alloy
Overall dimensions of the reset
Overall dimensions of the reset
block:length 15 cm and thickness 1.2 cm Reset path material nylon
Used in conjunction with the
zipper to repair the zipper door
zipper to repair the zipper door

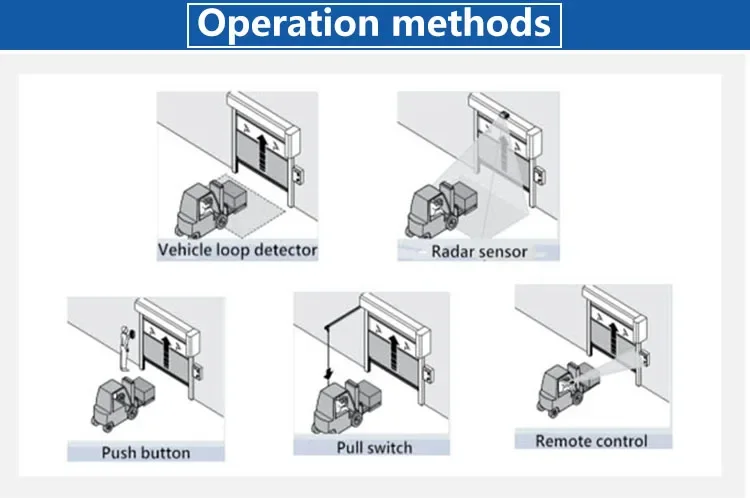

Options of operation
Widely used in food factory, electronic workshop, warehouse, clean room, warehouse, etc.

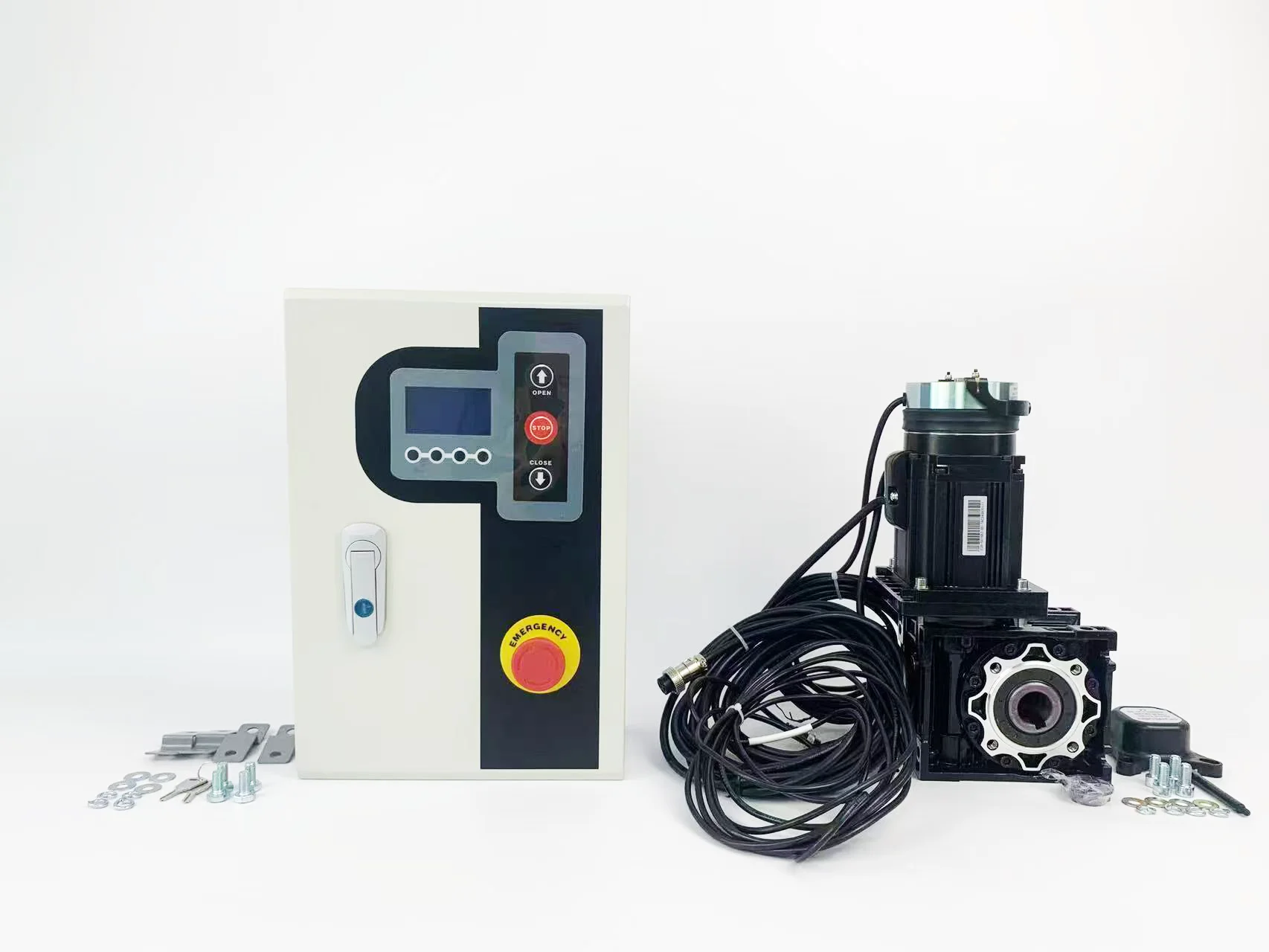

Control Parts of Zipper Door Kit
Multiple options on motor, control box and safety device
Servo Motor
High precision: Closed-loop control achieves micron-level positioning, with accurate speed and torque control.
Fast response: Millisecond-level start/stop, high acceleration, and strong anti-interference capability.
Wide speed regulation range: Stepless speed adjustment from zero to rated speed, with high efficiency at low speeds.
Strong overload capacity: Capable of withstanding 2-3 times the rated torque for overload, durable and equipped with perfect fault protection.
Easy adaptation: Supports multiple feedback elements and communication protocols, with modular design for flexible expansion.
Fast response: Millisecond-level start/stop, high acceleration, and strong anti-interference capability.
Wide speed regulation range: Stepless speed adjustment from zero to rated speed, with high efficiency at low speeds.
Strong overload capacity: Capable of withstanding 2-3 times the rated torque for overload, durable and equipped with perfect fault protection.
Easy adaptation: Supports multiple feedback elements and communication protocols, with modular design for flexible expansion.
