Residential Garage Door Motors
Product Description:
The photocell sensor kit (safe-t-beam system) including the receiving and transmitter photocells and mounting brackets. This system is compatible with all Hinuode garage door openers and is a required safety feature that automatically reverses the garage door if an object passes through the infrared beam.

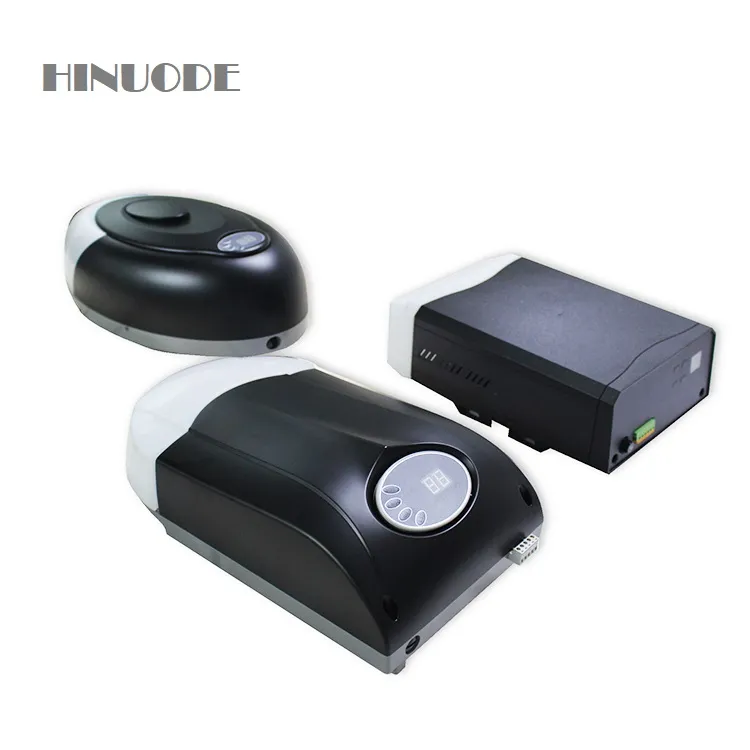

Pictures of garage door motor:
Similar Garage Door Motors:
Specifications:
|
Model No. |
HTGD800 |
HTGD1000 |
HTGD1200 |
|
Pull and push force |
800Nm |
1000Nm |
1200Nm |
|
Rated Voltage |
AC 220-240V, 50-60HZ |
AC 220-240V, 50-60HZ |
AC 220-240V, 50-60HZ |
|
Motor Power |
Max 154W |
Max 200W |
Max 260W |
|
Apply Door Area |
Max 12 square mtrs |
Max 15 square mtrs |
Max 18 square mtrs |
|
Rail Length |
3m, 3.3m 3.6m, 3.9m |
3m, 3.3m 3.6m, 3.9m |
3m, 3.3m 3.6m, 3.9m |
|
Opener Noise |
Below 60DB |
Below 60DB |
Below 60DB |
|
Remote Distance |
25-35m |
25-35m |
25-35m |
|
Remote Coding |
Rolling code, 433.92mhz |
Rolling code, 433.92mhz |
Rolling code, 433.92mhz |
|
Temperature range |
-25 to +55C |
-25 to +55C |
-25 to +55C |
Product Features:
QUIET & RELIABLE
DC Motor provide smooth and ultra-quiet operation
Soft Start & Soft Stop technology which will assist in extending the life of the opener, and protect doors
Battery backup ensures access even when the power is out.
SAFE & SECURE
Rolling Code assures a new code is sent every time the remote control is used, the code with over 4.29 billion different possible combinations
Safety automatic reversing will stop the door from closing if the garage door senses any obstacle while in operation
Automatic force setting, monitors and adjusts the force needed to open your garage door.
Manual Release handle allows you to open your garage door manula when power failure.
LED Courtesy Ligh turn on automatically when the doors are operated , turn off 3 minutes later automatically.
Electronic limits with power fail memory
Auto close door function available
External terminal for Wall push button, photocell, warning light
SMART
Smart Wifi technology lets users monitor, receive alerts and control the garage door opener away from home. Peace of mind knowing if your garage door is open or closed anywhere and any time.
Product Application:
Sectional doors,
Tilting doors,
Sliding doors,
Folding doors
Optional Accessories:
Vairous optional Accessories such as:
Wireless wall push button
Wireless keypad
Photocell sensor
Emergency Lock
Back Battery
External Wifi Box
Packaging & Shipping:
INCLUDED IN THE BOX
1 x ZTGD motor unit
1 x rail assembly
2 x 4 button remotes
1 x Mounting brackets
1 x Instruction Manual
Packing Ways
Motor and Single-piece Rail packed separately
Motor and 3-pieces Rail packed in one carton
Shipment Container Loading
LCL shipment packed by Pallet
20GP: 800 SETS
40GP: 1600 SETS
